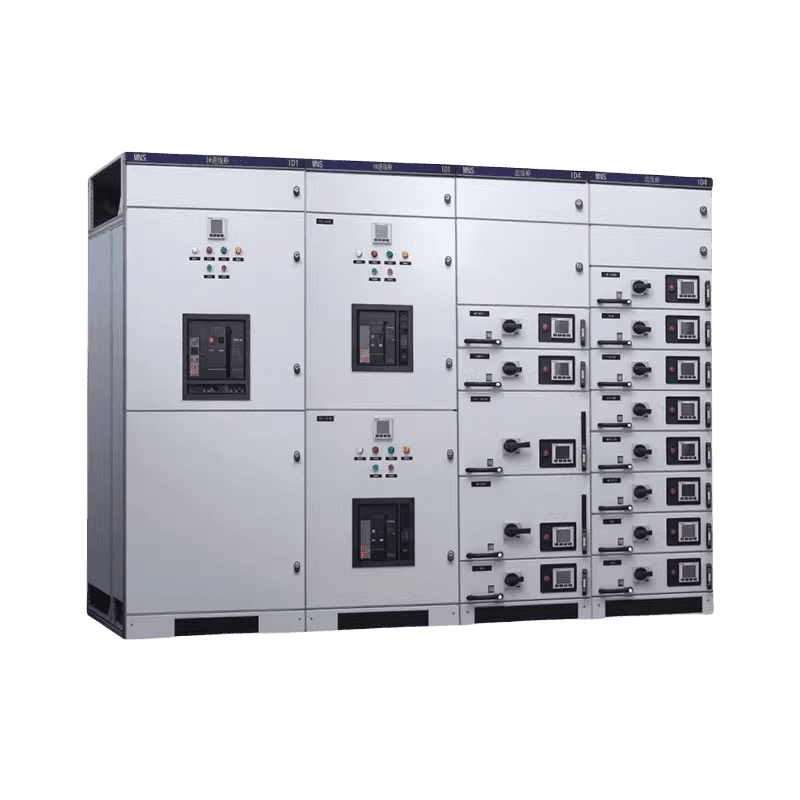

MNS Low-Voltage Drawout Switchgear
Product Features
- Designed and developed based on imported switchgear products
• Applicable to AC 50(60)Hz systems
• Rated working voltage 660V or less
• For control of power generation, transmission, distribution
• Power conversion and consumption equipment control
• Complies with GB7251-1, JB/T9661, IEC439
• Can be configured into different schemes
• High-strength flame-retardant engineering plastic components
• Effectively enhance safety protection performance
• Drawer units are compact and powerful
• Highly interchangeable
• Easy to replace and maintain
• Reliable contact
MNS Low-Voltage Drawout Switchgear
Type Meaning (Model Code)
M N S
M: Modular
N: Low-voltage
S: Switchgear
Example: MNS means Modular, Low-voltage, Switchgear.
Product Overview
The MNS series low-voltage switchgear assembly (the “switchgear”) is a product designed and developed based on imported switchgear products. It is applicable to systems with an AC frequency of 50(60) Hz and a rated working voltage of 660V or less, and is used for the control of power generation, transmission, distribution, conversion, and consumption equipment. It complies with GB7251-1 Low-Voltage Switchgear and Controlgear Assemblies, JB/T9661 Low-Voltage Drawable Switchgear Assemblies, and the international standard IEC439.
The switchgear can be configured into different schemes for cabinet frame structures and drawer units. It uses high-strength flame-retardant engineering plastic components, which effectively enhance safety protection performance. The drawer units are compact, powerful, highly interchangeable, and easy to replace and maintain, and have reliable contact.
Product Features
- Designed and developed based on imported switchgear products
• Applicable to AC 50(60)Hz systems
• Rated working voltage 660V or less
• For control of power generation, transmission, distribution
• Power conversion and consumption equipment control
• Complies with GB7251-1, JB/T9661, IEC439
• Can be configured into different schemes
• High-strength flame-retardant engineering plastic components
• Effectively enhance safety protection performance
• Drawer units are compact and powerful
• Highly interchangeable
• Easy to replace and maintain
• Reliable contact
Structural Features
The basic cabinet frame is a C-profile modular structure, and all the structural parts of the frame are either galvanized or made of aluminum-zinc-coated plates. They are fastened and connected to each other into a basic frame by self-tapping locking screws and grade 8.8 hexagon screws. Then, subject to the scheme changes, corresponding doors, sealing plates, partitions, mounting brackets, as well as components such as busbars and function units are added to form a complete device. The dimensions of the components and compartments inside the device are modularized (the modular unit E = 25mm). The IP rating of the cabinet body is IP3X-IP4X.
Additional information
| Product Name | MNS Low-Voltage Drawout Switchgear |
|---|---|
| Model Code Meaning | M: Modular / N: Low-voltage / S: Switchgear |
| IP Rating | IP3X – IP4X |
| Power users | AC frequency of 50(60) Hz and a rated working voltage of 660V or less, |
| Cabinet Frame | C-profile modular structure; galvanized or aluminum-zinc coated plates |
| Expandability | Configurable doors, partitions, brackets, busbars per scheme requirements |
