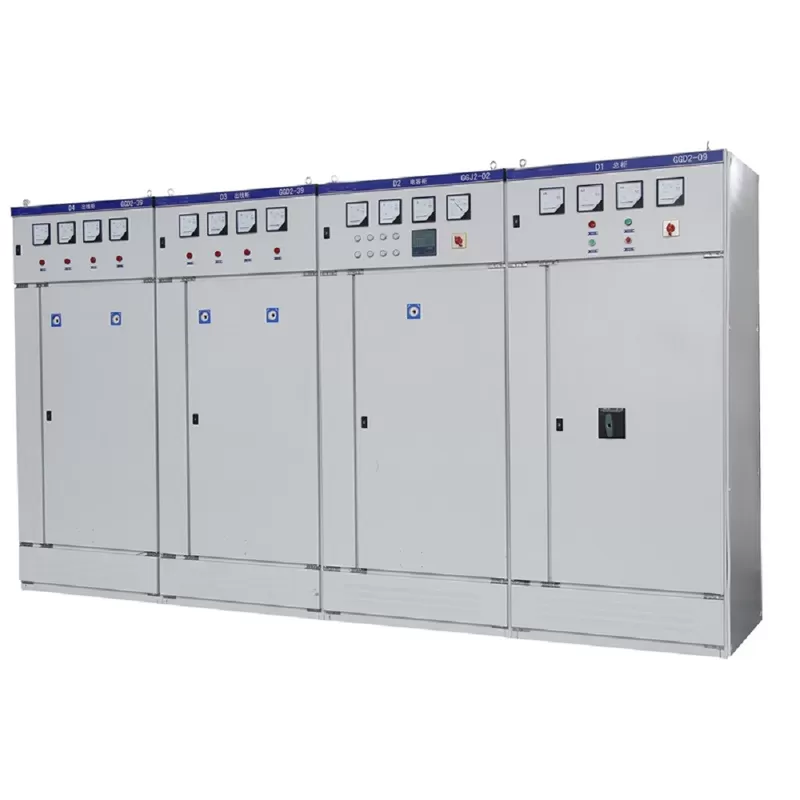

GGD Low Voltage Distribution Cabinet
Product Features
- High breaking capacity
• Good dynamic and thermal stability
• Strong practicality
• Applicable to power plants, substations, petrochemical sectors
• For industrial and mining enterprises, high-rise buildings
• Power distribution, motor control, capacitor compensation
• AC frequency 50Hz, rated voltage 380V
• Rated current up to 3150A
• For conversion, distribution, and control of electric energy
• Power, lighting, and power distribution equipment
GGD Low-Voltage Distribution Cabinet
Type Meaning (Model Code)
G G D □
G: AC low-voltage distribution cabinet
G: Fixed installation
D: Power distribution
□: Design serial number
Example: GGD1 means AC low-voltage distribution cabinet, Fixed installation, Power distribution, Design serial number 1.
Product Overview
The GGD type AC low-voltage distribution cabinets are applicable to the power distribution systems of power plants, substations, petrochemical sectors, industrial and mining enterprises, high-rise buildings, etc. for power distribution of power systems, motor control centers, capacitor compensation, etc. of power users with an AC frequency of 50Hz, a rated working voltage of 380V, and a rated working current up to 3150A, and are used for the conversion, distribution, and control of electric energy of power, lighting, and power distribution equipment.
The GGD type AC low-voltage distribution cabinet is a low-voltage distribution panel designed by the Ministry of Energy with the aim of promoting the technological progress of China’s low-voltage power distribution industry and accelerating the renewal and replacement of low-voltage power distribution switchgear assemblies. The product features high breaking capacity, good dynamic and thermal stability, and strong practicality.
Product Features
- High breaking capacity
• Good dynamic and thermal stability
• Strong practicality
• Applicable to power plants, substations, petrochemical sectors
• For industrial and mining enterprises, high-rise buildings
• Power distribution, motor control, capacitor compensation
• AC frequency 50Hz, rated voltage 380V
• Rated current up to 3150A
• For conversion, distribution, and control of electric energy
• Power, lighting, and power distribution equipment
Structural Features
The GGD type AC low-voltage distribution cabinet uses a universal cabinet configuration. The frame is assembled by local welding of 8MF cold-formed steel sections and has 20-module mounting holes, making it highly versatile.
The GGD type AC low-voltage distribution cabinet fully considers the heat dissipation problem during the operation of the cabinet body. There are different numbers of ventilation slots on the upper and lower ends of the cabinet body, making the sealed cabinet body form a natural ventilation duct from top to bottom to achieve the purpose of heat dissipation.
The instrument door equipped with electrical components is connected to the frame using multi-strand copper flexible wires. The mounting parts in the cabinet are connected to the frame using knurled screws, and the whole cabinet forms a complete grounding protection circuit.
The surface of the cabinet body uses the electrostatic spraying process, with strong adhesion and good texture. The whole cabinet has a matte finish to avoid glare.
The IP rating of the cabinet body is IP30.
Additional information
| Product series | GGD Low-Voltage Distribution Cabinet |
|---|---|
| Power users | AC frequency 50Hz, rated voltage 380V |
| IP Protection Class | IP30 |
| Product dimensions | According to the user's drawings can be provided |
