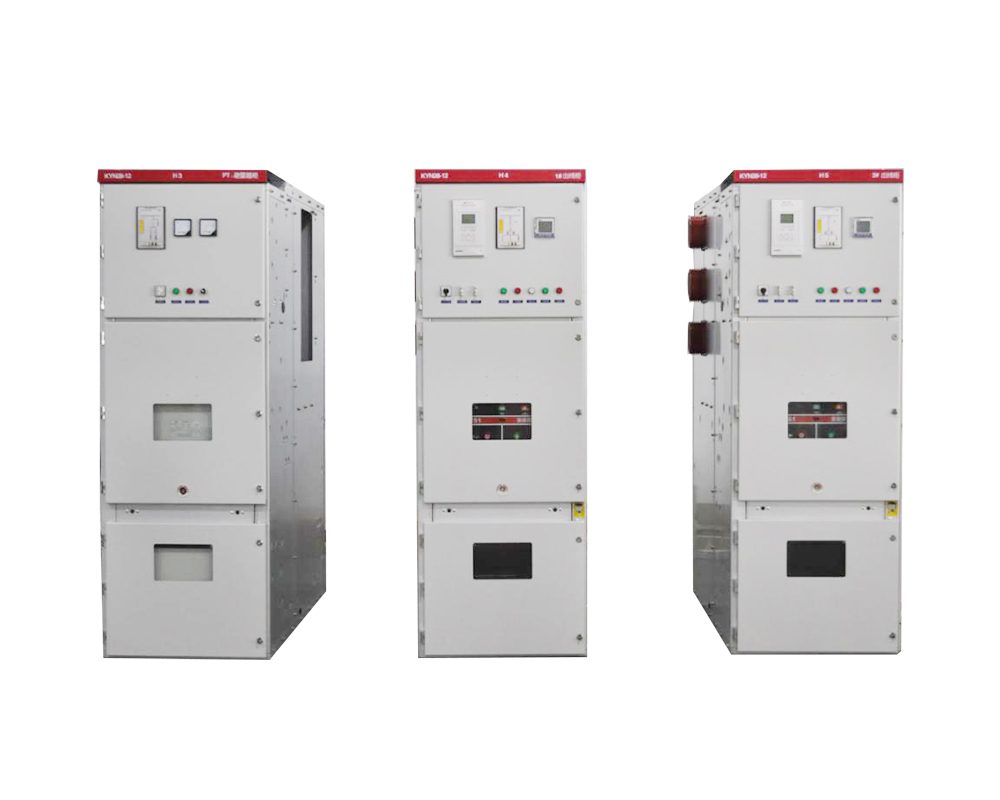

KYN28A-12 Indoor Metal-Clad Central Position Switchgear
Product Features
- Metal-clad central position design
• Suitable for 3.6~12kV, 50Hz power systems
• Rated current up to 4000A
• Equipped with VS1 or VD4 vacuum circuit breaker
• High-quality cold-rolled steel plate construction
• CNC processed and bolted assembly
• Protection level: IP4X (enclosure), IP2X (when door opened)
• Complete “five prevention” function:
– Prevent operation of circuit breaker with load
– Prevent closing of grounding switch with power
– Prevent accidental entry into live compartment
– Prevent closing of circuit breaker with grounding switch
• Small size and light weight
• Beautiful appearance
• High degree of generalization
• Small land occupation
• Good interchangeability
• Convenient installation and maintenance
• Widely used in power plants, substations, industrial and mining enterprises, high-rise buildings
KYN28A-12 Indoor Metal-Clad Central Position Switchgear
Type Meaning (Model Code)
K Y N 28 A – 12
K: Metal-clad
Y: Indoor
N: Central position
28: Design serial number
A: Improved type
12: Rated voltage (kV)
Product Overview
The KYN28A-12 (GZS1) type indoor metal-clad central position switchgear (hereinafter referred to as switchgear) is a new type of switchgear developed by our company based on the introduction of advanced technology from abroad. It is suitable for three-phase AC 50Hz, rated voltage 3.6~12kV, rated current up to 4000A single bus and single bus section power systems, for receiving and distributing electrical energy, and controlling, protecting and monitoring circuits.
The switchgear is equipped with VS1 vacuum circuit breaker or imported VD4 vacuum circuit breaker, and the cabinet body is made of high-quality cold-rolled steel plate after CNC processing and bolted assembly. The protection level of the enclosure is IP4X, and the protection level when each compartment and circuit breaker room door is opened is IP2X. The switchgear has various functions such as preventing the operation of the circuit breaker with load, preventing the closing of the grounding switch with power, preventing the accidental entry into the live compartment, and preventing the closing of the circuit breaker with the grounding switch.
This switchgear has the advantages of small size, light weight, beautiful appearance, high degree of generalization of components, small land occupation, good interchangeability of components, perfect “five prevention” function, and convenient installation and maintenance.
Product Features
- Metal-clad central position design
• Suitable for 3.6~12kV, 50Hz power systems
• Rated current up to 4000A
• Equipped with VS1 or VD4 vacuum circuit breaker
• High-quality cold-rolled steel plate construction
• CNC processed and bolted assembly
• Protection level: IP4X (enclosure), IP2X (when door opened)
• Complete “five prevention” function:
– Prevent operation of circuit breaker with load
– Prevent closing of grounding switch with power
– Prevent accidental entry into live compartment
– Prevent closing of circuit breaker with grounding switch
• Small size and light weight
• Beautiful appearance
• High degree of generalization
• Small land occupation
• Good interchangeability
• Convenient installation and maintenance
• Widely used in power plants, substations, industrial and mining enterprises, high-rise buildings
Technical Parameters
Rated Voltage: 3.6kV, 7.2kV, 12kV
Rated Current: 630A, 1250A, 1600A, 2000A, 2500A, 3150A, 4000A
Rated Frequency: 50Hz
Rated Short-time Withstand Current: 16kA, 20kA, 25kA, 31.5kA, 40kA, 50kA
Rated Peak Withstand Current: 40kA, 50kA, 63kA, 80kA, 100kA, 125kA
Rated Short-circuit Duration: 4s
Protection Level: IP4X (enclosure), IP2X (when door opened)
Additional information
| Product Name | KYN28A-12 Indoor Metal-Clad Central Position Switchgear |
|---|---|
| Product Type | New-generation metal-clad switchgear with imported technology integration |
| Rated Voltage | 3.6kV / 7.2kV / 12kV |
| Rated Current | 630A ~ 4000A (630/1250/1600/2000/2500/3150/4000A) |
| Rated Frequency | 50Hz, Three-phase AC |
| "Five Prevention" Interlock Functions | ✅ Prevent operating circuit breaker under load |
| Protection Level | IP4X (enclosure), IP2X (when door opened) |
