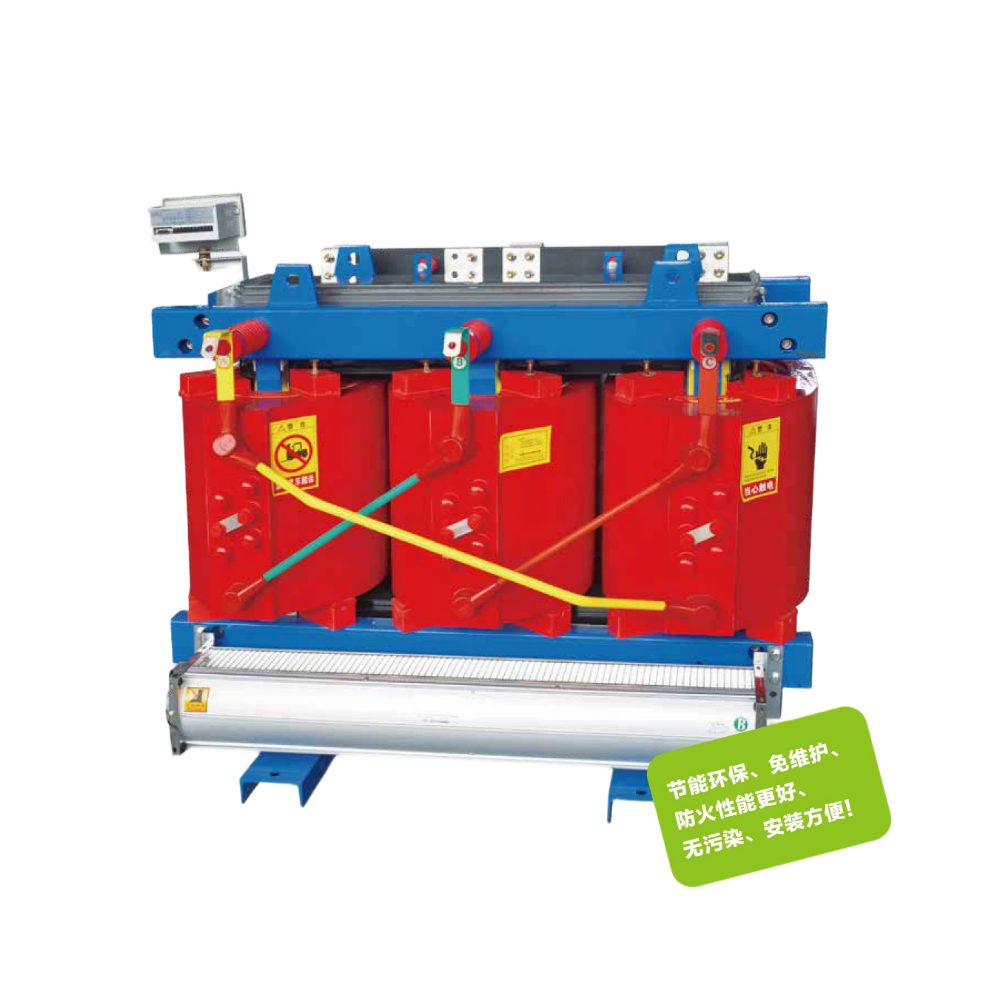

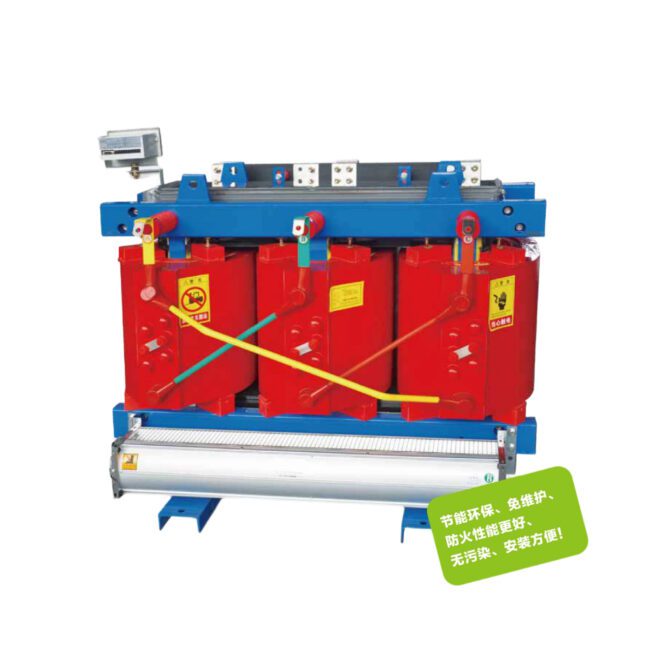

SCB18 Energy Efficiency Level One Cast Resin Dry Transformer
Product Features
- GB20052-2020 standard energy-saving product
• Energy efficiency Grade 1 (primary level) – highest efficiency
• Lower losses compared to Grade 2 energy efficiency products
• No-load loss and noise reduction through optimized design
• Noise level decreased by 20% compared to JB/T10088-2016
• Advanced iron core and coil structure
• High reliability and long service life
• Environmentally friendly and energy-saving
• Maintenance-free operation
• Better fire performance
• National PCCC energy-saving certification product
SCB18 Energy Efficiency Level One Cast Resin Dry Transformer
Type Meaning (Model Code)
S C B 18 – □ / □ – NX1
S: Three-phase
C: Epoxy resin casting type
B: Low voltage foil winding
18: Performance level code
□: Rated capacity (kVA)
□: Voltage level (kV)
NX1: Energy efficiency level (Grade 1)
Example: SCB18-100/10-NX1 means Three-phase, Epoxy resin casting, Low voltage foil winding, Performance level 18, 100kVA capacity, 10kV voltage level, Energy efficiency Grade 1.
Product Overview
GB20052-2020 standard energy-saving product energy-efficiency two-stage dry-type transformer is a product independently developed by our company through the combination of research and application of new materials and new technology, independent innovation and technology introduction, and through the optimization and innovation of new design of iron core and coil structure to achieve the purpose of reducing no-load loss and noise.
Compared with the current national standard JB/T10088-2016, the noise level decreases by an average of 20%, and the product performance level reaches the domestic advanced level. Compared with the second-level energy efficiency products, the first-level energy efficiency products have lower losses.
Product Features
- GB20052-2020 standard energy-saving product
• Energy efficiency Grade 1 (primary level) – highest efficiency
• Lower losses compared to Grade 2 energy efficiency products
• No-load loss and noise reduction through optimized design
• Noise level decreased by 20% compared to JB/T10088-2016
• Advanced iron core and coil structure
• High reliability and long service life
• Environmentally friendly and energy-saving
• Maintenance-free operation
• Better fire performance
• National PCCC energy-saving certification product
Main Technical Parameters
| Type | Rated Capacity (kVA) | Connection Group | Voltage Combination (kV) High/Low |
Tapping Range | No-load Loss (W) | Load Loss (W) PK120°C/PK145°C |
No-load Current (%) | Short-circuit Impedance (%) |
| SCB18-30 | 30 | Yyn0 or Dyn11 | 10 6.3 6 / 0.4 | ±5% ±2×2.5% ±3 or -1 x2.5% | 115 | 455/490 | 2.0 | 4.0 |
| SCB18-50 | 50 | Yyn0 or Dyn11 | 10 6.3 6 / 0.4 | ±5% ±2×2.5% ±3 or -1 x2.5% | 165 | 640/690 | 2.0 | 4.0 |
| SCB18-80 | 80 | Yyn0 or Dyn11 | 10 6.3 6 / 0.4 | ±5% ±2×2.5% ±3 or -1 x2.5% | 225 | 885/950 | 1.5 | 4.0 |
| SCB18-100 | 100 | Yyn0 or Dyn11 | 10 6.3 6 / 0.4 | ±5% ±2×2.5% ±3 or -1 x2.5% | 245 | 1010/1090 | 1.5 | 4.0 |
| SCB18-125 | 125 | Yyn0 or Dyn11 | 10 6.3 6 / 0.4 | ±5% ±2×2.5% ±3 or -1 x2.5% | 285 | 1190/1280 | 1.3 | 4.0 |
| SCB18-160 | 160 | Yyn0 or Dyn11 | 10 6.3 6 / 0.4 | ±5% ±2×2.5% ±3 or -1 x2.5% | 340 | 1370/1470 | 1.3 | 4.0 |
| SCB18-200 | 200 | Yyn0 or Dyn11 | 10 6.3 6 / 0.4 | ±5% ±2×2.5% ±3 or -1 x2.5% | 385 | 1620/1740 | 1.1 | 4.0 |
| SCB18-250 | 250 | Yyn0 or Dyn11 | 10 6.3 6 / 0.4 | ±5% ±2×2.5% ±3 or -1 x2.5% | 440 | 1770/1900 | 1.1 | 4.0 |
| SCB18-315 | 315 | Yyn0 or Dyn11 | 10 6.3 6 / 0.4 | ±5% ±2×2.5% ±3 or -1 x2.5% | 540 | 2210/2370 | 1.0 | 4.0 |
| SCB18-400 | 400 | Yyn0 or Dyn11 | 10 6.3 6 / 0.4 | ±5% ±2×2.5% ±3 or -1 x2.5% | 600 | 2550/2730 | 1.0 | 4.0 |
| SCB18-500 | 500 | Yyn0 or Dyn11 | 10 6.3 6 / 0.4 | ±5% ±2×2.5% ±3 or -1 x2.5% | 710 | 3110/3340 | 1.0 | 4.0 |
| SCB18-630 | 630 | Yyn0 or Dyn11 | 10 6.3 6 / 0.4 | ±5% ±2×2.5% ±3 or -1 x2.5% | 830 | 3740/4020 | 0.85 | 6.0 |
| SCB18-800 | 800 | Yyn0 or Dyn11 | 10 6.3 6 / 0.4 | ±5% ±2×2.5% ±3 or -1 x2.5% | 940 | 4420/4760 | 0.85 | 6.0 |
| SCB18-1000 | 1000 | Yyn0 or Dyn11 | 10 6.3 6 / 0.4 | ±5% ±2×2.5% ±3 or -1 x2.5% | 1090 | 5160/5570 | 0.85 | 6.0 |
| SCB18-1250 | 1250 | Yyn0 or Dyn11 | 10 6.3 6 / 0.4 | ±5% ±2×2.5% ±3 or -1 x2.5% | 1290 | 6150/6560 | 0.85 | 6.0 |
| SCB18-1600 | 1600 | Yyn0 or Dyn11 | 10 6.3 6 / 0.4 | ±5% ±2×2.5% ±3 or -1 x2.5% | 1510 | 7440/7950 | 0.85 | 6.0 |
| SCB18-2000 | 2000 | Yyn0 or Dyn11 | 10 6.3 6 / 0.4 | ±5% ±2×2.5% ±3 or -1 x2.5% | 1880 | 9140/9850 | 0.7 | 8.0 |
| SCB18-2500 | 2500 | Yyn0 or Dyn11 | 10 6.3 6 / 0.4 | ±5% ±2×2.5% ±3 or -1 x2.5% | 2230 | 10860/11700 | 0.7 | 8.0 |
Additional information
| Model Series | SCB18 Energy Efficiency Level One Dry-Type Transformer |
|---|---|
| Connection group grade | Yyn0 or Dyn11 |
| Rated capacity(KVA) | 30 ~ 2500 (KVA) |
| High voltage (kV) | 10 6.3 6 (kV) |
| Low voltage(kV) | 0.4 (kV) |
| Short-circuit resistance(%) | 4 / 6 / 8 |
| Tapping range | ±5% ±2×2.5% ±3 or-1 x2.5% |
