SC(B)11 Dry Type Transformer
Product Features
- Performance indicators conform to various standards
• Reliable operation reaching national advanced level
• Adopts foreign advanced manufacturing technology
• Complete design drawings and technical documents
• Advanced manufacturing facilities
• Stable manufacturing process
• Maintenance-free operation
• Better fire performance
• Pollution-free and environmentally friendly
• Easy installation
• Suitable for urban and rural distribution network centers
SC(B)11 Dry Type Transformer
Type Meaning (Model Code)
S C / G (B) 11 – □ / □
S: Three-phase
C: Epoxy resin casting type
G: Dry-type air-cooled
(B): Low voltage foil winding (optional)
11: Performance level code
□: Rated capacity (kVA)
□: Voltage level (kV)
Example: SC11-100/10 means Three-phase, Epoxy resin casting, Dry-type, Performance level 11, 100kVA capacity, 10kV voltage level.
Product Overview
The performance indicators of dry-type transformers produced by our company conform to various standards. Transformers operate reliably through user’s verification and has reached national advanced level. This series products adopts foreign advanced manufacturing technology.
Design drawings and technical documents are completed, correct and clear. Manufacturing facilities are advanced. Manufacturing process is stable, measurement method is completed. All the above provide a solid guarantee for production of high-quality products.

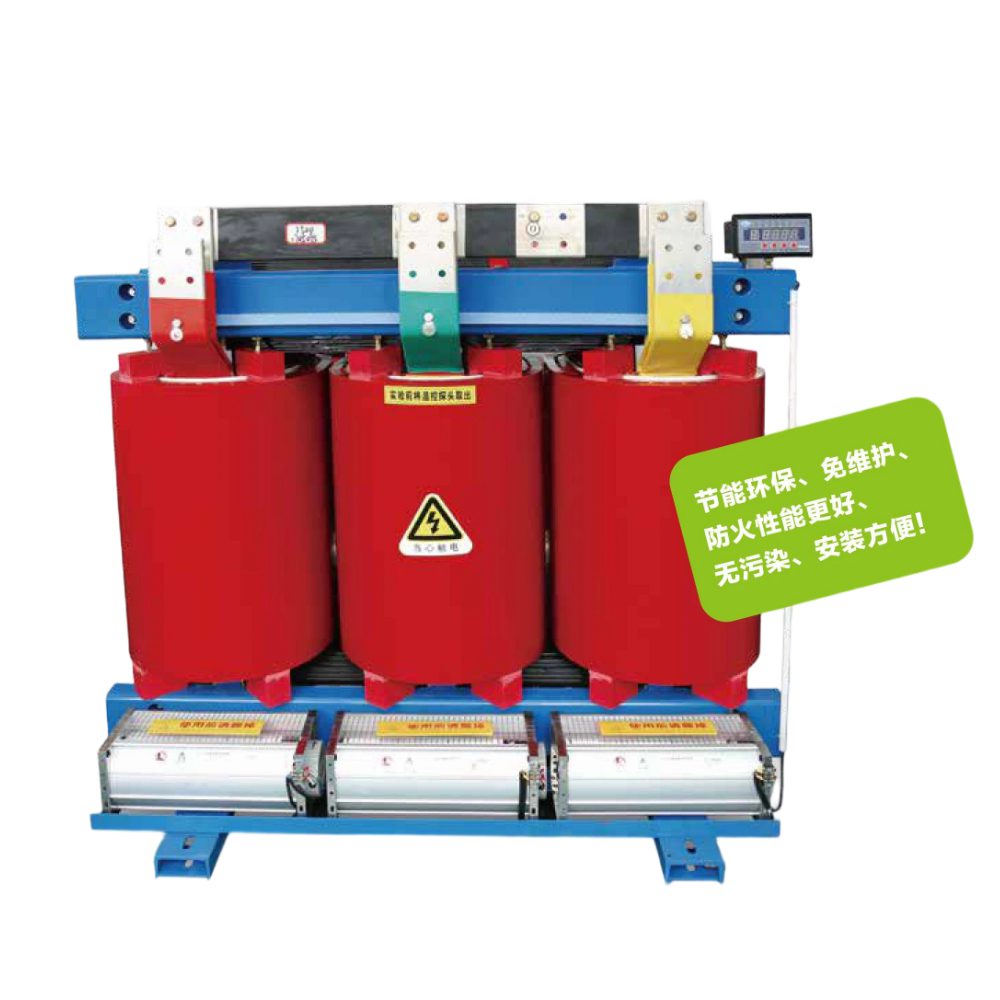

Energy saving, environmental protection, maintenance-free, better fire performance, pollution-free, easy installation!
Product Features
- Performance indicators conform to various standards
• Reliable operation reaching national advanced level
• Adopts foreign advanced manufacturing technology
• Complete design drawings and technical documents
• Advanced manufacturing facilities
• Stable manufacturing process
• Maintenance-free operation
• Better fire performance
• Pollution-free and environmentally friendly
• Easy installation
• Suitable for urban and rural distribution network centers
Main performance parameters for SC (B) 11 10kV series:
| Type | Rated Capacity (kVA) | Connection Group | Voltage Combination (kV) High/Low |
Tapping Range | No-load Loss (W) | Load Loss (W) PK120°C/PK145°C |
No-load Current (%) | Short-circuit Impedance (%) |
| SC11-30 | 30 | Yyn0 or Dyn11 | 10 6.3 6 / 0.4 |  |
190 | 710/760 | 2.0 | 4.0 |
| SC11-50 | 50 | Yyn0 or Dyn11 | 10 6.3 6 / 0.4 | |
270 | 1000/1070 | 2.0 | 4.0 |
| SC11-80 | 80 | Yyn0 or Dyn11 | 10 6.3 6 / 0.4 | |
370 | 1380/1480 | 1.5 | 4.0 |
| SC11-100 | 100 | Yyn0 or Dyn11 | 10 6.3 6 / 0.4 | |
400 | 1570/1690 | 1.5 | 4.0 |
| SC11-125 | 125 | Yyn0 or Dyn11 | 10 6.3 6 / 0.4 | |
470 | 1850/1980 | 1.3 | 4.0 |
| SCB11-160 | 160 | Yyn0 or Dyn11 | 10 6.3 6 / 0.4 | |
550 | 2130/2280 | 1.3 | 4.0 |
| SCB11-200 | 200 | Yyn0 or Dyn11 | 10 6.3 6 / 0.4 | |
630 | 2530/2710 | 1.1 | 4.0 |
| SCB11-250 | 250 | Yyn0 or Dyn11 | 10 6.3 6 / 0.4 | |
720 | 2760/2960 | 1.1 | 4.0 |
| SCB11-315 | 315 | Yyn0 or Dyn11 | 10 6.3 6 / 0.4 | |
880 | 3470/3730 | 1.0 | 4.0 |
| SCB11-400 | 400 | yn0 or Dyn11 | 10 6.3 6 / 0.4 | |
980 | 3990/4280 | 1.0 | 4.0 |
| SCB11-500 | 500 | Yyn0 or Dyn11 | 10 6.3 6 / 0.4 | |
1160 | 4880/5230 | 1.0 | 4.0 |
| SCB11-630 | 630 | Yyn0 or Dyn11 | 10 6.3 6 / 0.4 | |
1350 | 5880/6290 | 0.85 | 6.0 |
| SCB11-800 | 800 | Yyn0 or Dyn11 | 10 6.3 6 / 0.4 | |
1520 | 6960/7460 | 0.85 | 6.0 |
| SCB11-1000 | 1000 | Yyn0 or Dyn11 | 10 6.3 6 / 0.4 | |
1770 | 8130/8760 | 0.85 | 6.0 |
| SCB11-1250 | 1250 | Yyn0 or Dyn11 | 10 6.3 6 / 0.4 | |
2090 | 9690/10300 | 0.85 | 6.0 |
| SCB11-1600 | 1600 | Yyn0 or Dyn11 | 10 6.3 6 / 0.4 | |
2450 | 11700/12500 | 0.85 | 6.0 |
| SCB11-2000 | 2000 | Yyn0 or Dyn11 | 10 6.3 6 / 0.4 | |
3050 | 14400/15500 | 0.7 | 8.0 |
| SCB11-2500 | 2500 | Yyn0 or Dyn11 | 10 6.3 6 / 0.4 | |
3600 | 17100/18400 | 0.7 | 8.0 |
Main Performance Parameters for SC(B) 11 30-35KV Voltage Regulating Power Transformer Without Excitation
| Type | Connection Group Grade | Voltage Combination (KV) | No-load Loss (W) | Load Loss (W) | No-load Current (%) | Short-circuit Resistance (%) | |||
| High Voltage | Tapping Range | Low Voltage | PK120℃ | PK145℃ | |||||
| SC11-50 |
Dyn11, Yd11, Yyn0 |
35~38.5 | ±5%, ±2×2.5% | 3.5, 6, 6.3, 10, 10.5, 11 | 450 | 1420 | 1520 | 2.3 | 6.0 |
| SC11-100 | 35~38.5 | ±5%, ±2×2.5% | 3.5, 6, 6.3, 10, 10.5, 11 | 630 | 2090 | 2230 | 2.0 | 6.0 | |
| SC11-160 | 35~38.5 | ±5%, ±2×2.5% | 3.5, 6, 6.3, 10, 10.5, 11 | 790 | 2810 | 3000 | 1.5 | 6.0 | |
| SC11-200 | 35~38.5 | ±5%, ±2×2.5% | 3.5, 6, 6.3, 10, 10.5, 11 | 880 | 3320 | 3550 | 1.5 | 6.0 | |
| SC11-250 | 35~38.5 | ±5%, ±2×2.5% | 3.5, 6, 6.3, 10, 10.5, 11 | 990 | 3800 | 4060 | 1.3 | 6.0 | |
| SC11-315 | 35~38.5 | ±5%, ±2×2.5% | 3.5, 6, 6.3, 10, 10.5, 11 | 1170 | 4510 | 4820 | 1.3 | 6.0 | |
| SC11-400 | 35~38.5 | ±5%, ±2×2.5% | 3.5, 6, 6.3, 10, 10.5, 11 | 1370 | 5410 | 5790 | 1.1 | 6.0 | |
| SC11-500 | 35~38.5 | ±5%, ±2×2.5% | 3.5, 6, 6.3, 10, 10.5, 11 | 1620 | 6650 | 7110 | 1.1 | 6.0 | |
| SC11-630 | 35~38.5 | ±5%, ±2×2.5% | 3.5, 6, 6.3, 10, 10.5, 11 | 1860 | 7690 | 8230 | 1.0 | 6.0 | |
| SC11-800 | 35~38.5 | ±5%, ±2×2.5% | 3.5, 6, 6.3, 10, 10.5, 11 | 2160 | 9120 | 9760 | 1.0 | 6.0 | |
| SC11-1000 | 35~38.5 | ±5%, ±2×2.5% | 3.5, 6, 6.3, 10, 10.5, 11 | 2430 | 10400 | 11100 | 0.75 | 6.0 | |
| SC11-1250 |
Dyn11, Yd11, YNd11 |
35~38.5 | ±5%, ±2×2.5% | 6, 6.3, 10.5, 11 | 2830 | 12700 | 13600 | 0.75 | 6.0 |
| SC11-1600 | 35~38.5 | ±5%, ±2×2.5% | 6, 6.3, 10.5, 11 | 3240 | 15400 | 16500 | 0.75 | 6.0 | |
| SC11-2000 | 35~38.5 | ±5%, ±2×2.5% | 6, 6.3, 10.5, 11 | 3820 | 18200 | 19500 | 0.75 | 6.0 |
Insulation Level
| Voltage Classes KV | Maximum Running Voltage KV (Effective Value) | Rated Short-time Power Frequency Withstand Voltage KV (Effective Value) 1 min | Rated Lightning Impulse Withstand Voltage KV (Peak Value) | |
| Full Wave | Clipped Wave | |||
| 0.4 | 0.46 | 5 | 75 | |
| 10 | 12 | 35 | 75 | |
| 20 | 24 | 50 | 125 | 85 |
Additional information
| Model Series | SC(B)11 Dry-Type Transformer |
|---|---|
| Connection group grade | Yyn0 or Dyn11 |
| Rated capacity(KVA) | 30 ~ 2500 (KVA) |
| High voltage (kV) | 10 (kV) / 35 (kV) |
| Low voltage(kV) | 0.4/3.5/6/ 6.3/10/ 10.5/ 11(kV) |
| Short-circuit resistance(%) | 4 / 6 / 8.0 |
| Tapping range | +5% |
