When you’re sourcing a distribution transformer for a utility network, industrial plant, or commercial complex, the choices you make affect reliability, energy costs, and long-term ROI. FIJ TECH, a leading transformer manufacturer, designs and builds distribution transformers that meet international standards and are trusted by buyers across Southeast Asia, the Middle East, Africa, and Latin America. This guide walks you through the key technical considerations, efficiency standards, and real-world performance data to help you specify the right transformer for your project.

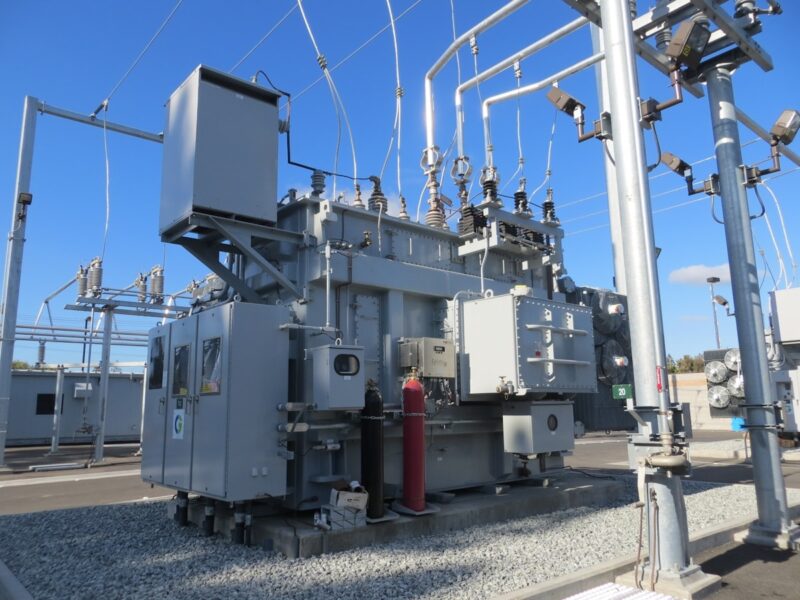

What Is a Distribution Transformer?
A distribution transformer steps down medium voltage (typically 6kV to 35kV) to low voltage (400V/230V or 480V/277V) for final consumption. Unlike large power transformers used in transmission grids, distribution transformers are designed for lower capacity (30kVA to 2500kVA standard, with custom options up to 31500kVA) and are optimized for efficiency and reliability under varying load conditions.
At FIJ TECH, we manufacture both oil immersed transformers and dry type transformers, each suited to specific applications:
- Oil immersed transformers: Ideal for outdoor installations, utility distribution, and industrial sites where high overload capacity and proven reliability are required.
- Dry type transformers: Perfect for indoor applications, high-rise buildings, and areas with strict fire safety regulations, offering low maintenance and environmental friendliness.
Key Technical Parameters to Specify
When specifying a distribution transformer, you need to define several critical parameters to ensure compatibility with your grid and load. Below are the most important ones:
Voltage Levels and Frequency
FIJ TECH manufactures transformers for primary voltages of 6kV, 10kV, 11kV, 20kV, 33kV, and 35kV, with secondary voltages typically 400V or 480V. We support both 50Hz and 60Hz systems, making our products suitable for markets worldwide.
Capacity and Overload Capability
Standard distribution transformer capacities range from 30kVA to 2500kVA, but we can design custom units up to 31500kVA for larger industrial or utility applications. The capacity is determined by the connected load and future expansion plans.
Cooling Methods
Cooling directly affects transformer lifespan and performance. Common cooling methods include:
- ONAN: Oil Natural Air Natural – standard for oil immersed transformers, relying on natural convection.
- ONAF: Oil Natural Air Forced – uses fans to increase cooling capacity when needed.
- AN: Air Natural – used for dry type transformers with natural air circulation.
- AF: Air Forced – adds fans for higher cooling efficiency in dry types.
Efficiency Standards and Loss Reduction
Energy efficiency is a major concern for utilities and industrial users due to rising electricity costs and environmental regulations. FIJ TECH offers transformers that comply with:
- GB 20052-2020 (China)
- EU EcoDesign Tier 2
- DOE 2016 (US)
These standards set maximum limits for no-load and load losses, ensuring lower energy waste over the transformer’s lifetime.
Factory Case Study: 11kV S13 Oil Immersed Transformer for a Vietnamese Textile Mill
To illustrate the real-world benefits of choosing the right distribution transformer, here’s a recent project from our export records.
Project Overview
Industry: Textile manufacturing
Country: Vietnam
Product: S13-M-2000/11 (11kV / 0.4kV, 2000kVA)
Certifications: IEC 60076, GB 1094, ISO 9001
The Challenge
The textile mill was experiencing frequent voltage fluctuations and high no-load losses from its aging S9 transformers. These issues led to production interruptions and inflated energy bills. The mill’s engineering team sought a reliable, energy-efficient replacement that could handle their 24/7 operation.
Our Solution
FIJ TECH supplied an S13 energy-efficient oil immersed transformer, which reduces no-load loss by approximately 30% compared to the previous S9 units. The transformer was designed with a low-loss amorphous core (optional) and optimized winding to minimize both no-load and load losses. Delivery was completed within 35 days, minimizing downtime.
Customer Feedback
“After upgrading to S13 transformers, our monthly energy cost dropped by approximately 18%. The delivery was completed within 35 days.”
This case demonstrates how a well-specified distribution transformer can significantly reduce operational costs and improve power quality.
Voltage Drop & Short-Circuit Impedance Check
One of the most common mistakes in transformer selection is ignoring the impedance voltage (uk%) and its impact on voltage drop. Here’s a practical method to verify that your chosen transformer will perform correctly:
Step-by-Step Check
- Verify impedance voltage (uk%) matches switchgear breaking capacity. The transformer’s uk% determines the short-circuit current that the switchgear must handle. For example, a typical 10kV distribution transformer has uk = 4%.
- Calculate voltage drop under load using the formula: ΔU = β × uk × (cosφ + sinφ × tanθ), where β is the load factor, cosφ is the power factor, and θ is the load angle.
- Ensure voltage drop at full load stays below 5% at motor terminals. This is especially critical for industrial facilities with sensitive equipment.
For example, with a transformer rated at 2000kVA, uk=4%, and a load factor of 0.8 at power factor 0.9, the voltage drop would be approximately 3.5%, which is within acceptable limits. Always cross-check with your switchgear’s short-circuit rating.
Oil Immersed vs. Dry Type: How to Choose
The choice between oil immersed and dry type transformers depends on your specific application. Here is a quick comparison to guide your decision:
| Feature | Oil Immersed | Dry Type |
|---|---|---|
| Cooling Method | ONAN / ONAF | AN / AF |
| Installation | Outdoor / indoor with oil containment | Indoor preferred |
| Fire Safety | Requires fire protection | Self-extinguishing |
| Maintenance | Periodic oil testing | Minimal |
| Typical Applications | Utility distribution, industrial | Commercial buildings, underground |
FIJ TECH offers both types. For outdoor utility projects, our oil immersed transformers are a proven choice. For indoor installations with strict fire codes, consider our dry type transformers, which include the SCB14 Energy Efficiency Two-Stage Dry Type Transformer and the SC(B)H15 Amorphous Alloy Dry Type Power Transformer.
Why Choose FIJ TECH as Your Distribution Transformer Supplier?
FIJ TECH is a transformer manufacturer with over a decade of export experience. Our factory is ISO 9001:2015 certified, and our products comply with IEC 60076 (power transformers), IEC 60076-11 (dry type transformers), IEEE C57.12.00, and GB 1094. We also offer CE and VDE certifications on a project basis.
Our engineering team provides technical support throughout the specification process, ensuring that your transformer is optimized for your grid conditions and load profile. We also offer custom designs for special voltage ratios, impedance, and accessories.
